myGHmotion

Features myGHmotion

MYGHMOTION offers you a viewer where you can visualize a virtual representation of the configuration of your dry dock or industrial field that we will have previously modeled for you.

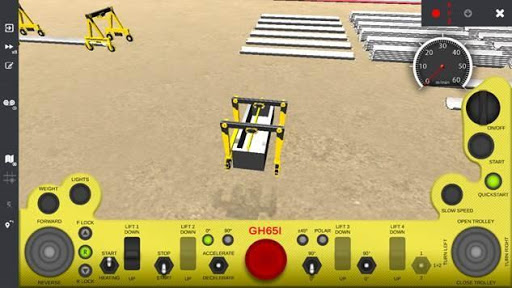

In addition, they can simulate the operation of the different cranes and elements that are part of the configuration: - industrial marine and gantry cranes and marine crane cranes -, directly controlling the cranes by means of a virtual copy of their radio control.FUNCTIONALITIES- Languages: Spanish (English and French will be implemented)- Platforms: Windows, MAC, iOS, Android (at the moment Windows, MAC and Android)- Load configurations created from the editor application.- Operating modes.- Boats:    o Movement to docking area (ramp, pool or boom crane).    o Free movement.    o Definition of the route for any of its movements.- Cars:    o Movement to collection area (boom or gantry crane).    o Free movement.    o Definition of the route for any of its movements.- Pen cranes    - Porches        o Connect in tandem (industrial monoviga).- Swimming pools    o Modify Length (according to the tolerance defined in the editor).    o Modify pool width (according to the tolerance defined in the editor).    o Modify the width of the breakwaters (according to the tolerance defined in the editor).    o Modify barrier position on breakwaters.- Cribs    or Move.    or Rotate.- Load elements (industrial)    or Move.    or Rotate.- Change speed x1x2, x4, x8.- Collect metrics (provided that the configuration is uploaded in the cloud and can be saved as long as there is an internet connection).- Various display modes:    o Perspective view.    o Orthogonal / overhead view.    o Detail view when loading elements on the cranes.    o Detail view when moving porches.- Simulation of automotive frames.    o Simulation of collisions with elements of the environment.    o Motion simulation according to its specific configuration.    o Load simulation according to its parameters.    o Consumption simulation according to its movement and terrain.    o Virtualized radio control control.- Simulation of boom cranes.    o Simplified virtualized control radio control.    o Load simulation according to its parameters.- In maritime configurations, options for boats.    o Possibility of docking bow or stern.    o Slings in cranes selected according to the boat to be lifted.    o Crane lift simulation according to its weight and center of gravity.    o Placement in varada cars with cradle and subsequent placement of cradle and boat in chosen place.    o Additional edition of tolerances to fit perfectly to the pool    o Configurable pools:         - Pool dimensions can be modified by the customer from the base pool (These changes will not be saved for future uses of the application).         - The portico corresponding to a pool is automatically resized when configuring the dimensions of the same.- In industrial configurations    o Possibility of including two types of gantry: monoviga and birrail.    o Possibility of including various elements for handling: wind towers, wind blades, beams, tanks, metal plates, stones, tunnel boring parts, voussoirs, pipes, etc.
(new elements will be included at the request of the client)    o Different suitable tools for the handling of each element: clamp, simple rocker, rocker 2 hooks, rocker 8 points (voussoirs), magnets, single multigancho, multigancho telescopic, multiposition, slings.    o Crane lift simulation according to its weight and center of gravity.    o Placement in trucks for cargo.    o Possibility of controlling two gantries in tandem.
